DC-DC Power IC
Advanced Power Management solutions with our HT3000 Series, HT6000 Series, and HT7000 Series semiconductors.
HT3000 Series
The HT3000 series provides cutting-edge, high-efficiency DC-DC power solutions specifically engineered for contemporary IoT, smart home, and automotive applications. Featuring an I²C interface, it seamlessly connects with wireless communication modules such as Bluetooth and Wi-Fi. This connectivity empowers users to remotely manage ON/OFF functions, output voltage, and current limits through intuitive mobile apps. By facilitating remote power management, the HT3000 series significantly boosts productivity and efficiency across a wide range of IoT devices in homes, office buildings, automobiles, and factories.
-
DVS for Edge AI
Patented, energy-efficient computing
-
Advanced Protection Features
UVP, OVP, OCP, and CC_OVP
-
i2c bus communication
For IoT Smart Connectivity

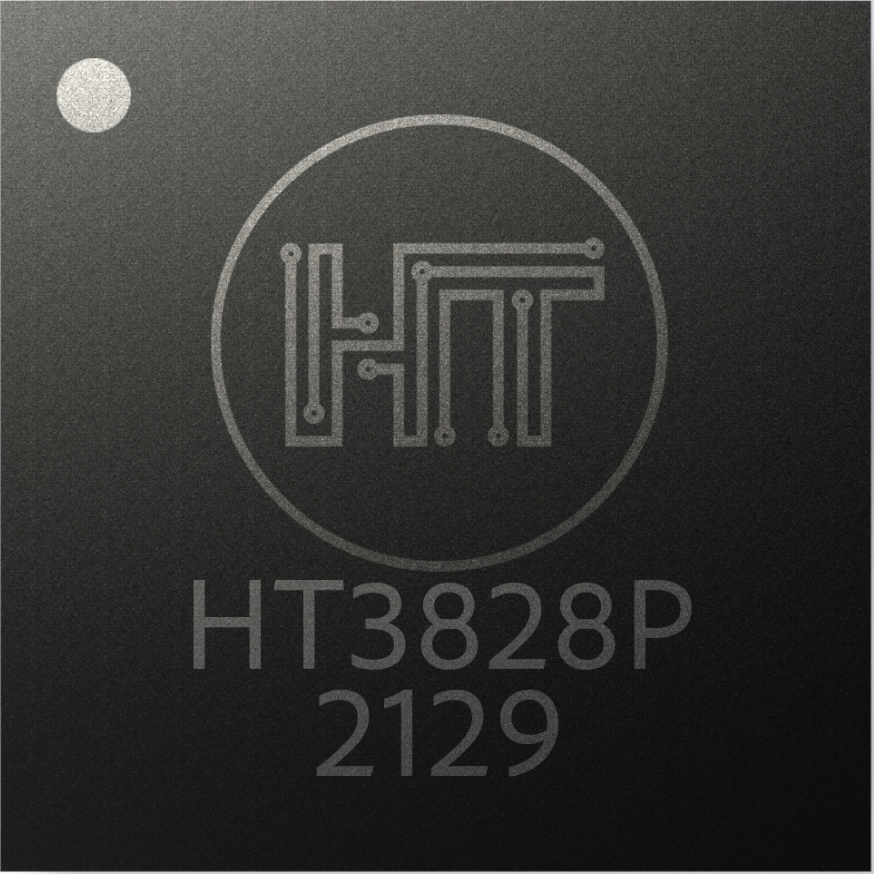

The HT3328S and HT3828P are efficient dual-channel synchronous step-down converters for high-power applications. The HT3828P supports an input range of 4.7V to 36V, with a typical output of 1-2.5A per channel and a total of up to 2-5A, featuring an adjustable frequency of up to 1MHz. The HT3328S is an external FET version with fixed frequencies of 350kHz, 500kHz, and 700kHz. Both converters support an I²C interface for connecting to wireless modules like Bluetooth and Wi-Fi, enabling users to control ON/OFF functions and output settings via mobile apps, which enhances remote power management for IoT devices in various settings.
Product Details
HT6000 Series
The HT6122S, HT6422P, and HT6329S are advanced dual-channel synchronous step-down controllers engineered for high-power fast-charging applications. The HT6122S, compatible with the QC Protocol, features one Type-A and one Type-C output, operating within a 4.7V to 36V input voltage range and delivering up to 3.6A. The HT6422P, with four integrated power MOSFETs, operates efficiently within a 4.7V to 13V input range, minimizing the size and cost of external components. The HT6329S, an external feedback variant, supports the same 4.7V to 36V input range and enables seamless integration with fast-charging protocols such as QC3.0 and PD3.1, enhancing performance in complex power management scenarios. It offers selectable switching frequencies for optimized efficiency, a soft-start function, and comprehensive protection mechanisms. Additionally, the HT6329S supports 2-phase operation, making it ideal for high-efficiency power delivery in CPU applications, particularly for AI chipsets from NVIDIA and Qualcomm. Together, these controllers deliver robust, efficient solutions for modern high-power charging demands.
-
Multiphase High current AI CPU
3V-40A or higher
-
Patented Low EMI Design
Proven reliable
-
Flexible output voltage setting
Highly integrated, cost-effective
These controllers support fast charging and include various protective features, such as over-temperature protection, effectively reducing component count while enhancing power density. Designed to prevent inrush current at startup, they offer a versatile and efficient solution for general-purpose DC-DC applications, catering to the evolving needs of modern electronic systems.
Product Details
|
HT6329S
External FET
Edge AI-CPU Power (5-36V in, 3V 10-40A out)
Characterisation Report >
Datasheet >
|
||||
HT7000 Series
The HT7000 series ICs are high-efficiency, dual-channel synchronous step-down converters designed for high-power dual-port DC-DC applications, integrated with four power MOSFETs. They feature an adjustable switching frequency up to 1MHz via an external resistor, accommodating compact inductors and capacitors. Ideal for USB fast charging, automotive systems, and smart IoT devices, the series boasts an intuitive design with enhanced connectivity and built-in fault monitoring for efficient and reliable power management.
-
Patented 3A3A Dual Channel
Integrated FET Solution
-
Patented Low EMI Design
Proven reliable
-
Compact & Small Size
Due to high frequency (1MHz+)
The HT7228P is a high-efficiency, dual-channel synchronous step-down converter designed for high-power DC-DC applications. It supports an input range of 4.7V to 13V, configurable output voltages from 3V to 12V, and a typical current of 2.5A, with an adjustable switching frequency up to 1MHz for compact components. Featuring a soft start function to prevent inrush current and various protections against overvoltage, short circuits, and undervoltage, the HT7228P is ideal for USB fast chargers, allowing interfacing with protocol ICs for fast charging schemes like QC3.0 and PD3.1 at both output channels, minimizing component count.
